AC-ALK-DA2010B

AC-ALK-DA2010B – Product Cards

AC-ALK-DA2010B

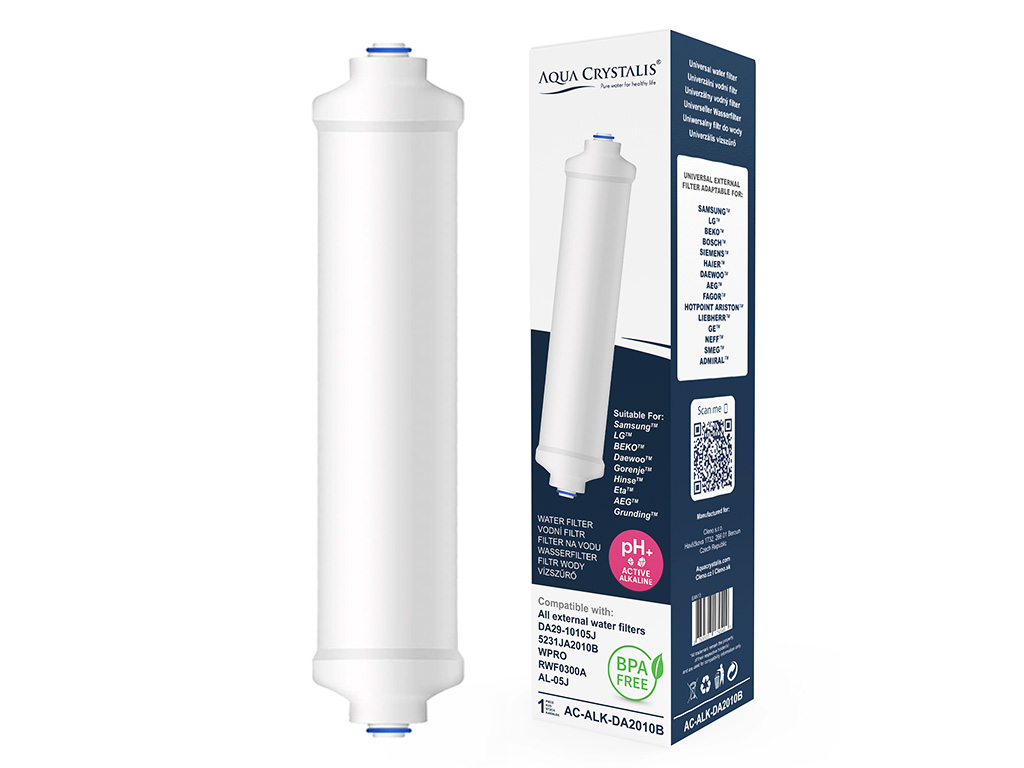

AC-ALK-DA2010B Water Filter
  • Fully compatible with all external refrigerator filters
  • Improves the quality of water
  • Improves the taste of water
  • Reduces undesirable substances
  • Reduces chlorine
  • Includes alkaline function
  • Helps support a higher water pH
  • BPA Free
BUY NOW

Detail

AC-ALK-DA2010B Detail 1 AC-ALK-DA2010B Detail 2 AC-ALK-DA2010B Detail 3

Description

The AC-ALK-DA2010B is a high-quality external water filter designed for refrigerators with an external inline filtration system. It helps improve water quality, reduce chlorine and other unwanted substances, and supports better taste and freshness of drinking water and ice.


This version is based on the AC-DA2010B filter, but additionally includes an alkaline function, designed to help support a higher water pH. It is a practical solution for households looking for clean, better-tasting water with added alkaline benefit.

Why Choose AC-ALK-DA2010B?

  • Cleaner water: helps reduce chlorine and unwanted impurities
  • Better taste: improves flavor of drinking water and ice
  • Alkaline function: supports a higher pH value of filtered water
  • Universal use: suitable for refrigerators using external inline filters
  • Long service life: designed for reliable filtration up to 6 months

Specifications

  • Name: AC-ALK-DA2010B
  • Replacement for: All external filters
  • Compatibility: Universal external inline refrigerator filters
  • Function: Filtration + alkaline effect
  • Capacity: 5678 litres
  • Flow: 1.9 – 3.8 LPM
  • Operating temperature: 1 °C – 37.8 °C
  • Working pressure: 206 kPa (30 psi) – 827 kPa (120 psi)
  • Dimensions: 25.5 x 5.1 cm
  • Service life: 6 months

Compatible Models

  • Samsung refrigerators with external inline filter
  • LG refrigerators with external inline filter
  • Daewoo refrigerators with external inline filter
  • Other refrigerators using universal external water filters
  • And other fridges using an external inline filtration system

Installation manual

  1. Close the water supply
    Turn off the water supply before starting the installation.
  2. Empty the remaining water
    Dispense any remaining water from the refrigerator system.
  3. Remove the old filter
    Disconnect and remove the old external filter from the water hose.
  4. Prepare the hose
    Cut the hose ends if needed by approximately 12–15 mm for a clean connection.
  5. Connect the inlet side
    Firmly push the water hose from the water supply into the end of the filter marked with the inward arrow.
  6. Secure the connection
    Push the hose in fully and secure it with the coupling.
  7. Flush the filter
    Dispose of approximately 15 litres of water until the water runs clear.
  8. Connect the outlet side
    Attach the hose leading to the refrigerator to the end marked with the outward arrow and secure it properly.
  9. Check the installation
    Make sure both hose ends are firmly connected and correctly fitted.
  10. Open the water supply
    Turn the water supply back on and check the system.
  11. Reset the filter indicator
    Reset the LED filter replacement indicator on your refrigerator if your model supports it.

CAUTION: Check the direction of water flow marked with an arrow on the filter. (Water supply → Fridge)

CAUTION: Always check the filter area for water leaks.
